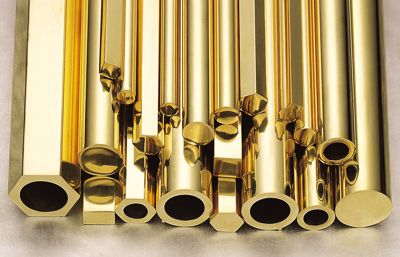

HIGH STRENGTH BRASS ROD


Description of Product

High strength; superior hot forgeability, mechanical properties and corrosion resistance; application to car and vessel

Use of Product

Synchronizer ring, propeller shaft, pump shaft, etc.

Size Productible by Product Type

Type Size Productible (in mm)
Round Rod Ф6 ~ Ф85
Hollow Rod Inner diameter Ф14; 5T or more
(Round Rod, Hexagonal Rod) Ф24 * Ф14 ~ Ф76

Packing Available by Product Dimension

Basic Packing

Outer diameter under Ф12 (OD under Ф8 in case of exportation): 20 to 25 kg;
simple packing with nylon cord + PP band
Outer diameter Ф12 or more (OD Ф8 or more in case of exportation): PP band
Packing weight: 1,000 to 1,500 kg for brass rod (500 and 1,000 kg, respectively in case of exportation);
500 kg for hollow rod

Strawboard Packing

Basic packing + plastic packing + paperboard packing

Wood Box Packing

Basic packing + plastic packing + wood box

Chemical Composition and Mechanical Properties

Chemical composition

Alloy number Chemical composition, wt.%
KS/JIS UNIS Cu Pb Fe Sn Zn Others
- C67300 58.0-63.0 0.40-3.0 0.5 0.3 Rem. 0.25Ni,0.25Al,
2-3.5Mn,0.50
-1.5Si
0.20-2.0Al,0.50-2.5Mn
0.20-2.0Al,1.0-3Mn
- C67600 57.0-60.0 0.50-1.0 0.40-1.3 0.50-1.5 Rem.
C6782 - 56.0-60.5 0.5 0.10-1.0 - Rem.
C6783 - 55.0-59.0 0.5 0.20-1.5 - Rem.

Mechanical Properties

Alloy number Standard number Temper designation Diameter and length between opposite sides Tensile strength(Mpa) Elongation(%) Hardness(HRB)
KS/JIS UNIS
- C67300 ASTMB138 1/2H ~25
25~65
65~		 500
450
450		 13
15
17		 -
-
-
H ~25
25~38
38~65
65~		 550
525
510
470		 8
10
12
16		 -
-
-
-
C6782 - KSD5101 F 6~50 460 15 -
C6783 - KSD5101 F 6~50 510 12 -
